☆ 技术参数(parameter):
NO. |
性能指标(item) |
参数(parameter) |

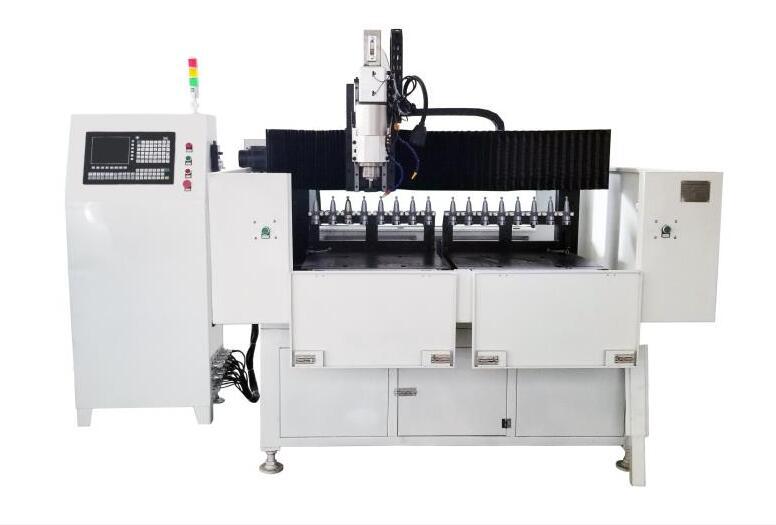

DX6060M |
1 |
行程(travel) |
X轴(X axis) |
600mm |
Y轴(Y axis) |
600mm |
||
Z轴(Z axis) |
180mm |
||
2 |
平台尺寸 (worktable size) |
X*Y |
600*400mm |
3 |
精度(accuracy) |
加工精度 (working accuracy) |
0.05mm |
重复定位精度 (repositioning accuracy) |
0.05mm |
||
4 |
结构(structure) |
台面结构 (worktable structure)) |
T型槽或真空吸附台面可选 (T slot or vacuum can be optional) |
X、Y、Z结构 (X,Y,Z structure) |
直线导轨,丝杆传动 (PMI linear guiderail and ball screw) |
||
5 |
速度(speed) |
大空行速度 (max. travel speed) |
X/Y:5000mm/min Z:10000 mm/min |
大工作速度 (max. working speed) |
X/Y:10000mm/min Z:5000 mm/min |
||
6 |
主轴(spindle) |
主轴功率(power) |
1.5KW,水冷(双头可选) 1.5KW, cooled by water( double spindle can be optional) |
主轴转速(rotary speed) |
0-5000r/min |
||
刀夹型号(clamper type) |
ER20 |
||
7 |
辅助配置 (other apparatus) |
对刀仪 (tool length detector) |
自动(auto type) |
润滑(lubricant) |
自动润滑系统(auto lubricant system) |
||
冷却系统(cooling system) |
凝雾系统(frozen mist spraying system) |
||
罩壳(outer cover) |
半封闭或全封闭可选 (semi-closed cover or all-closed cover can be optional) |
||
8 |
运行模式(working mode) |
|
伺服电机及驱动 (servo motor and driver) |
9 |
工作电压(working voltage) |
|
AC220V/50Hz或AC0V/50Hz |
10 |
运行指令 (file format) |
|
G代码(G code) |
11 |
操作系统 (control system) |
|
亚力菲系统 |
12 |
外形尺寸 (outer size) |
|
2000*1800*1800mm |
13 |
重量(weight) |
|
3500kg |
