多年来,科仑服务的客户遍布全国各地,乃至全球的生产中心东南亚,韩国,日本,台湾,香港。设计中心,北美,南美,欧洲等地区。我司的宗旨是为客户提供优质价廉的视频连接器产品。
科仑公司愿景:将成为亚太地区中小制造业企业主高度依赖的连接器快速供应商!企业使命:为促进视频同轴连接器优质优价发展而努力,降低客户的生产管理成本而奋斗。

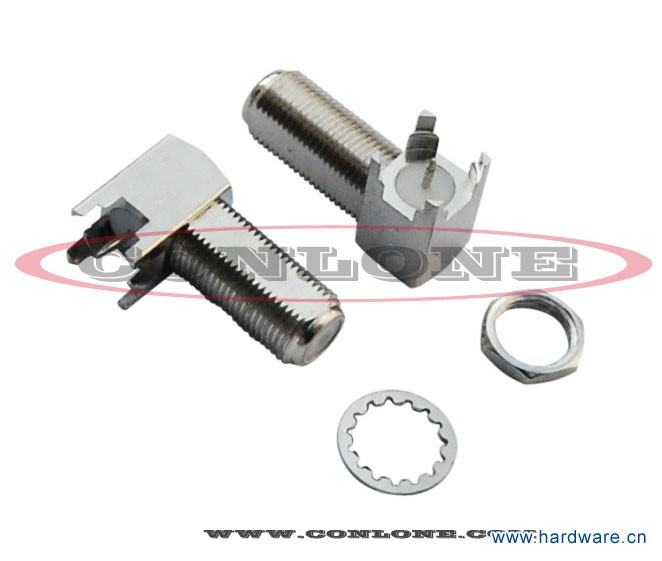

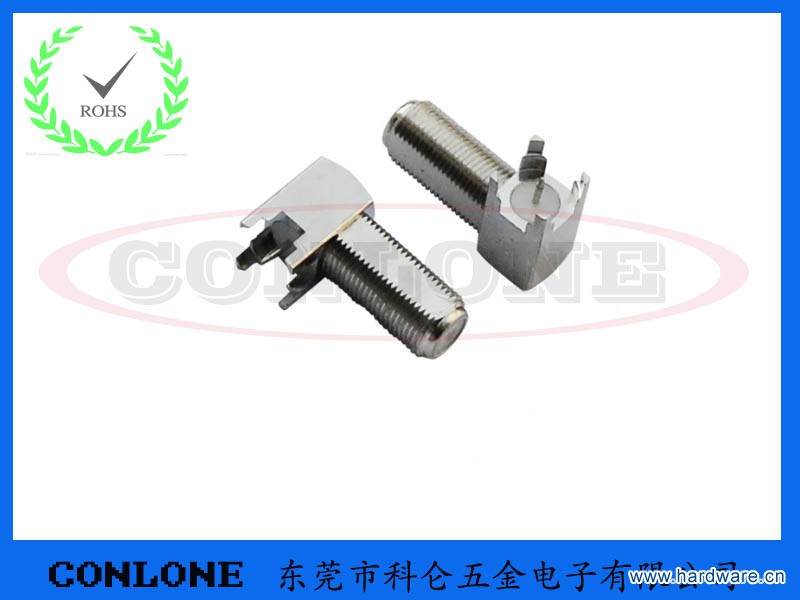

F type joining devices use for 75Ωcable assign system, especially CATV, broadcast television network, It can already be used for having impedance to mate the occasion required, can be used in not mating the occasion too. It is joined, inserts helping jointly that its characteristic is whorl , the price is suitable.
F type joining devices can exchange and use with the similar products in the world. FL10 products are M10X0.75 whorl, the structure, performance are the same as F type.
射频同轴连接器是对用于射频同轴馈线系统的连接器的通称,该连接器供通信和电子设备及类似电子设备所配用射频传输线中连接射频同轴电缆。或同轴与微带,同轴与波导之间的连接。它的插头部分常装在电缆端头,插座部分常安装在设备固定单元上,也常用于两根射频电缆之间的连接。射频同轴连接器亦称RF连接器。“R”是RADOI(射频)的DY个字母,“F”是FREQUENCY(频率)的DY个字母。
F型连接器可与国际上同类产品互换使用。FL10产品为M10X0.75螺纹,结构、性能与F型相同。
F type joining devices can exchange and use with the similar products in the world. FL10 products are M10X0.75 whorl, the structure, performance are the same as F type.






材料与涂覆 MATERIAL & PLATING
壳体 shell 黄铜 brass 镀亮镍 nickel plated
插针 contact pin 黄铜 brass 镀金或银 gold or silver plated
弹性接触件elastic contact 锡青铜beryllium or tin brass 镀金或银 gold or silver plated
绝缘体 insulator 聚四氟乙烯或聚乙烯PTFE or PE
压接套 crimp ferrule 铜合金 copper alloy 镀亮镍 nickel or gold plated
o型密封件o-ring sealing 硅橡胶 6146 silastic
适用技术标准 APPLICABLE STANDARD
IEC 60169-24
应用范围(1): 无线通信和传输系统/室外AP接头
