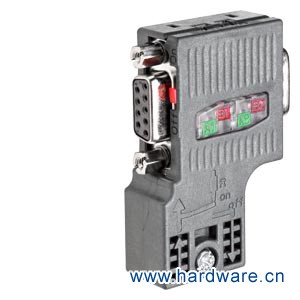

西门子总线接头6ES7972-0BA42-0A0

上海隆彦长期低价销售西门子PLC,200，300，400，1200，西门子PLC附件，西门子电机，西门子人机界面，西门子变频器，西门子数控伺服，西门子总线电缆现货供应，欢迎来电咨询系列产品，折扣低，货期准时，并且备有大量库存.长期有效

SIEMENS 上海隆彦自动化科技有限公司

联系人：詹雪芬 (销售经理)

商务QQ：850111590

传真： 021 - 67355123

手机： 18717946324

24小时业务咨询热线：021- 61311927

我司只销售西门子原装正品，享受西门子免费一年保修，欢迎来电洽谈！

PROFIBUS DP总线接头 ●为网络增加设备：在9600的波特率下。50米距离之内，一个网段Z多可以连接32个设备，使用一个中继器允许在网络上增加32个设备。●在不同的网段之间电隔离：如果不同的网段具有不同的地电位，将他们隔离会提高网络的通讯质量。一个中继器在网络中被算作网段的一个节点，但没有被指定站地址。1．触点的安排梯形图的触点应画在水平线上，不能画在垂直分支上。 2．串、并联的处理在有几个串联回路相并联时，应将触点Z多的那个串联回路放在梯形图Z上面。在有几个并联回路相串联时，应将触点Z多的并联回路放在梯形图的Z左面。 3．线圈的安排不能将触点画在线圈右边，只能在触点的右边接线圈。 4．不准双线圈输出如果在同一程序中同一元件的线圈使用两次或多次，则称为双线圈输出。这时前面的输出无效，只有Z后一次才有效，所以不应出现双线圈输出。5．重新编排电路如果电路结构比较复杂，可重复使用一些触点画出它的等效电路，然后再进行编程就比较容易。 6．编程顺序（2）数据对象数据对象包括定时器、计数器、高速计数器、累加器、模拟量输入/输出。定时器类似于继电器电路中的时间继电器，但它的精度更高，定时精度分为lms，10ms和100ms三种，根据精度需要由编程者选用。定时器的数量根据CPU型号不同。计数器的计数脉冲由外部输入，计数脉冲的有效沿是输入脉冲的上升沿或下降沿，计数的方式有累加1和累减1两种方式。计数器的个数同各CPU的定时器个数。高速计数器与一般计数器不同之处在于，计数脉冲频率更高可达2kHz/7kHz，计数容量大，一般计数器为16位，而高速计数器为32位，一般计数器可读可写，而高速计数器一般只能作读操作。在S7-200CPU中有4个32位累加器，即AC0～AC3，用它可把参数传给子程序或任何带参数的指令和指令块。此外，PLC在响应外部或内部的中断请求而调用中断服务程序时，累加器中的数据是不会丢失的，即PLC会将其中的内容压入堆栈。因此，用户在中断服务程序中仍可使用这些累加器，待中断程序执行完返回时，将自动从堆栈中弹出原先的内容，以恢复中断前累加器的内容。但应注意，不能利用累加器作主程序和中断服务子程序之间的参数传递。模拟量输入/输出可实现模拟量的A/D和D/A转换，而PLC所处理的是其中的数字量。3．参数空间用于存放有关PLC组态参数的区域，如保护口令、PLC站地址、停电记忆保持区、软件滤波、强制操作的设定信息等，存贮器为EEPROM。在S7-200PLC中所处理数据有三种，即常数、数据存贮器中的数据和数据对象中的数据

用于将 PROFIBUS 节点连接到 PROFIBUS 总线电缆
安装简单
FastConnect 插头采用绝缘刺破连接技术，可确保极短的组装时间
集成端接电阻 (6ES7 972-0BA30-0A0 中不具有)
通过带 Sub-D 接口的连接器可以连接编程器，无需额外安装网络节点

Area of application

用于 PROFIBUS 的 RS485 总线连接器，可用于连接 PROFIBUS 节点或 PROFIBUS 网络部件到 PROFIBUS 总线电缆。

Design

提供有各种类型的总线连接器，可优化用于连接的设备：

总线连接器具有轴向电缆引出线（180°），可用于如 PC 和 SIMATIC HMI OP，传输速率高达 12 Mbit/s，带集成的总线端接电阻
带垂直电缆引出线的总线连接器（90°）；

这种接头采用垂直电缆引出线（有或没有编程器接口），数据传输速率高达 12 Mbit/s，带集成的终端电阻。传输速率为 3、6 或12 Mbit/s 时，在带编程器接口的总线接头和编程器之间，需要使用 SIMATIC S5/S7 连接电缆。

有 30°电缆引出线的总线接头（经济型），无编程器接口，数据传输速率Z大为 1.5 Mbit/s，无集成的总线端接电阻。
PROFIBUS 快速连接 RS485 总线接头（90°或 180°电缆引出线），传输速率Z大为 12Mbit/s，采用绝缘刺破技术可实现快速简单安装（用于硬线和软线）。

Functions 西门子总线接头6ES7972-0BA42-0A0

总线连接器可直接插入到 PROFIBUS 站或 PROFIBUS 网络组件的 PROFIBUS 接口（9 针 Sub-D 接口）中。

可使用 4 个端子在插头中连接进入和离开的 PROFIBUS 电缆。

通过从外部清晰可见的便于接触的开关，可以连接总线连接器中集成的总线端接器（不适用于 6ES7 972-0BA30-0A0）。在此过程中，连接器中的进线和出线总线电缆是分开的（隔离功能）。

必须在 PROFIBUS 网段的两端进行这种连接。

Integration

总线连接器	6ES7972-0BA12-0A0 6ES7972-0BB12-0XA	6ES7972-0BA42-0A0 6ES7972-0BB42-0A0	6ES7972-0BA30-0A0¹⁾
电缆引出线	90° 电缆引出线	35° 电缆引出线	30° 电缆引出线
用于 PLC
S7-200/-300/-400®	•²⁾	•	•
S7-1200 with CM 1241, CM 1242-5; CM 1243-5	•
带有 CP 5603 的 S7-mEC	•	•	•
C7-633 DP, C7-634 DP, C7-635, C7-636	•	•	•
S5-115U 至 S5-155U	•	•	•
I/O 设备
ET 200M/ET 200B/ET 200L/ET 200S	•	•	•
编程设备
PG 720/720C/PG 740/PG 760		•	•
接口
IM 308-C	•	•	•
CP 5431 FMS/DP	•	•	•
CP 342-5/CP 343-5/ CP 443-5/IM 467	•	•
CP 5511/CP 5512/CP 5711/CP 5603	•	•	•
CP 561x/CP 562x	•	•
SIMATIC OP
OLM/OBT	•	•
RS 485 中继器	•	•
诊断中继器	•	•

• 适用于以下应用 西门子总线接头6ES7972-0BA42-0A0

1) 不能将柔性总线电缆与此连接器结合使用，Z大 1.5 Mbit/s

2) S7-400: 西门子总线接头6ES7972-0BA42-0A0
如果指定了 DP 接口，不能用于 MPI/DP 接口
如果指定了IFM2 接口，不能用于 IFM1 接口

总线连接器	6ES7972-0BA52-0A0 6ES7972-0BB52-0A0	6ES7972-0BA61-0A0 6ES7972-0BB61-0A0	6GK1500-0FC10	6GK1500-0EA02
电缆引出线	90° 电缆引出线	35° 电缆引出线	180° 电缆引出线	180° 电缆引出线
用于 PLC
S7-200/-300/-400	•	•
S7-1200 with CM 1241, CM 1242-5; CM 1243-5	•
带有 CP 5603 的 S7-mEC	•	•	•	•
C7-633 DP, C7-634 DP, C7-635, C7-636	•	•
S5-115U 至 S5-155U	•	•
I/O 设备
ET 200M/ET 200B/ET 200L/ET 200S	•	•
编程设备
PG 720/720C/PG 740/PG 760			•	•
接口
IM 308-C	•	•
CP 5431® FMS/DP	•	•
CP 342-5/CP 343-5/ CP 443-5/IM 467	•	•
CP 5511/CP 5512/CP 5711/CP 5603	•	•	•	•
CP 561x/CP 562x			•	•
SIMATIC OP			•	•
OLM/OBT	•	•	•	•
RS 485 中继器	•	•
诊断中继器	•	•

• 适用于以下应用

总线连接器	6ES7972-0BA70-0A0 6ES7972-0BB70-0A0
电缆引出线	90° 电缆引出线
用于 PLC
S7-200/-300/-400	•
S7-1200 with CM 1241, CM 1242-5; CM 1243-5	•
S7-1500	•
带有 CP 5603 的 S7-mEC	•
C7-633 DP, C7-634 DP, C7-635, C7-636	•
S5-115U 至 S5-155U	•
I/O 设备
ET 200M/ ET 200B/ ET 200L/ ET 200S, ET 200MP, ET 200SP	•
编程设备
PG 720/720C/PG 740/PG 760
接口
IM 308-C	•
CP 5431® FMS/DP	•
CP 342-5/CP 343-5/ CP 443-5/IM 467	•
CP 5511/CP 5512/CP 5711/CP 5603	•
CP 561x/CP 562x
SIMATIC OP
OLM/OBT	•
RS 485 中继器	•
诊断中继器	•

Technical Specifications

Order number	6ES7972-0BA12-0A0	6ES7972-0BB12-0A0	6ES7972-0BA42-0A0
Product type designation	PROFIBUS bus connector, RS485, screw, without PG socket, 90°	PROFIBUS bus connector, RS485, screw, with PG socket, 90°	PROFIBUS bus connector, RS485, screw, without PG socket, 35°
Product description	PROFIBUS bus connector, RS485, screw, without PG socket, 90°	PROFIBUS bus connector, RS485, srew, with PG socket, 90°	PROFIBUS bus connector, RS485, screw, without PG socket, 35°
Suitability for use	For connecting PROFIBUS nodes to the PROFIBUS bus cable	For connecting PROFIBUS nodes to the PROFIBUS bus cable	For connecting PROFIBUS nodes to the PROFIBUS bus cable
Transmission rate
Transfer rate with PROFIBUS DP	9.6 kbit/s ... 12 Mbit/s	9.6 kbit/s ... 12 Mbit/s	9.6 kbit/s ... 12 Mbit/s
Interfaces
Number of electrical connections
● for PROFIBUS cables	2	2	2
● for network components or terminal equipment	1	1	1
Type of electrical connection
● for PROFIBUS cables	Screw	Screw	Screw
● for network components or terminal equipment	Sub-D connector (9-pin)	Sub-D connector (9-pin)	9-pin Sub-D connector
Type of electrical connection FastConnect		No	No
Mechanical data
Design of terminating resistor	Integrated resistor combination that can be selected with slide switch	Integrated resistor combination that can be selected with slide switch	Integrated resistor combination that can be selected with slide switch
Material of the enclosure	plastic	plastic	plastic
Locking mechanism design		Screw	Screw
Design, dimensions and weight
Type of cable outlet	90° cable outlet	90° cable outlet	35 degree cable outlet
Width	15.8 mm	15.8 mm	15.8 mm
Height	64 mm	64 mm	54 mm
Depth	35.6 mm	35.6 mm	39.5 mm
Net weight	10 g	10 g	60 g
Permitted ambient conditions
Ambient temperature
● during operation	-25 ... +60 °C	-25 ... +60 °C	-25 ... +60 °C
● during storage	-40 ... +70 °C	-40 ... +70 °C	-40 ... +70 °C
● during transport	-40 ... +70 °C	-40 ... +70 °C	-40 ... +70 °C
Protection class IP	IP20	IP20	IP20
Product properties, functions, components general
Product feature
● silicon-free	Yes	Yes	Yes
Product component
● PG connection socket	No	Yes	No
● strain relief	Yes	Yes	Yes
Standards, specifications, approvals
Certificate of suitability
● RoHS conformity	Yes	Yes	Yes
● UL approval	Yes	Yes	Yes

Order number	6ES7972-0BB42-0A0	6ES7972-0BA30-0A0	6ES7972-0BA52-0A0
Product type designation	PROFIBUS bus connector, RS485, screw, with PG socket, 35°	PROFIBUS bus connector, RS485, Fast Connect, without PG socket, 30°	PROFIBUS bus connector, RS485, Fast Connect, without PG socket, 90°
Product description	PROFIBUS bus connector, RS485, screw, mwith PG socket, 35°	PROFIBUS bus connector, RS485, Fast Connect, without PG socket, 30°	PROFIBUS bus connector, RS485, Fast Connect, without PG-socket, 90°
Suitability for use	For connecting PROFIBUS nodes to the PROFIBUS bus cable	For connecting PROFIBUS nodes to the PROFIBUS bus cable	For connecting PROFIBUS nodes to the PROFIBUS bus cable
Transmission rate
Transfer rate with PROFIBUS DP	9.6 kbit/s ... 12 Mbit/s	9.6 kbit/s ... 1.5 Mbit/s	9.6 kbit/s ... 12 Mbit/s
Interfaces
Number of electrical connections
● for PROFIBUS cables	2	2	2
● for network components or terminal equipment	1	1	1
Type of electrical connection
● for PROFIBUS cables	Screw	Integrated insulation displacement contacts for 2-core PB FC-installation cables	Integrated insulation displacement contacts for 2-core PB FC-installation cables
● for network components or terminal equipment	9-pin Sub-D connector	Sub-D connector (9-pin)	9-pin Sub-D connector
Type of electrical connection FastConnect	No	Yes	Yes
Mechanical data
Design of terminating resistor	Integrated resistor combination that can be selected with slide switch	no integrated terminating resistor	Integrated resistor combination that can be selected with slide switch
Material of the enclosure	plastic	plastic	plastic
Locking mechanism design	Screw		Screw
Design, dimensions and weight
Type of cable outlet	35 degree cable outlet	30° cable outlet	90 degree cable outlet
Width	15.8 mm	15 mm	15.8 mm
Height	54 mm	57.6 mm	59 mm
Depth	39.5 mm	39.5 mm	35.6 mm
Net weight	67 g	46 g	10 g
Permitted ambient conditions
Ambient temperature
● during operation	-25 ... +60 °C	-25 ... +60 °C	-25 ... +60 °C
● during storage	-40 ... +70 °C	-40 ... +70 °C	-40 ... +70 °C
● during transport	-40 ... +70 °C	-40 ... +70 °C	-40 ... +70 °C
Protection class IP	IP20	IP20	IP20
Product properties, functions, components general
Product feature
● silicon-free	Yes	Yes	Yes
Product component
● PG connection socket	Yes	No	No
● strain relief	Yes	Yes	Yes
Standards, specifications, approvals
Certificate of suitability
● RoHS conformity	Yes	Yes	Yes
● UL approval	Yes	Yes	Yes

Order number	6ES7972-0BB52-0A0	6ES7972-0BA61-0A0	6ES7972-0BB61-0A0
Product type designation	PROFIBUS bus connector, RS485, Fast Connect, with PG socket, 90°	PROFIBUS bus connector, RS485, Fast Connect, without PG socket, 35°	PROFIBUS bus connector, RS485, Fast Connect, with PG socket, 35°
Product description	PROFIBUS bus connector, RS485, Fast Connect, with PG socket, 90°	PROFIBUS bus connector, RS485, Fast Connect, without PG socket, 35°	PROFIBUS bus connector, RS485, Fast Connect, with PG socket, 35°
Suitability for use	For connecting PROFIBUS nodes to the PROFIBUS bus cable	For connecting PROFIBUS nodes to the PROFIBUS bus cable	For connecting PROFIBUS nodes to the PROFIBUS bus cable
Transmission rate
Transfer rate with PROFIBUS DP	9.6 kbit/s ... 12 Mbit/s	9.6 kbit/s ... 12 Mbit/s	9.6 kbit/s ... 12 Mbit/s
Interfaces
Number of electrical connections
● for PROFIBUS cables	2	2	2
● for network components or terminal equipment	1	1	1
Type of electrical connection
● for PROFIBUS cables	Integrated insulation displacement contacts for 2-core PB FC-installation cables	Integrated insulation displacement contacts for 2-core PB FC-installation cables	Integrated insulation displacement contacts for 2-core PB FC-installation cables
● for network components or terminal equipment	9-pin Sub-D connector	9-pin Sub-D connector	9-pin Sub-D connector
Type of electrical connection FastConnect	Yes	Yes	Yes
Mechanical data
Design of terminating resistor	Integrated resistor combination that can be selected with slide switch	Integrated resistor combination that can be selected with slide switch	Integrated resistor combination that can be selected with slide switch
Material of the enclosure	plastic	plastic	plastic
Locking mechanism design	Screw
Design, dimensions and weight
Type of cable outlet	90 degree cable outlet	35 degree cable outlet	35 degree cable outlet
Width	15.8 mm	15.8 mm	15.8 mm
Height	59 mm	54 mm	54 mm
Depth	35.6 mm	39.5 mm	39.5 mm
Net weight	10 g	29 g	34 g
Permitted ambient conditions
Ambient temperature
● during operation	-25 ... +60 °C	-25 ... +60 °C	-25 ... +60 °C
● during storage	-40 ... +70 °C	-40 ... +70 °C	-40 ... +70 °C
● during transport	-40 ... +70 °C	-40 ... +70 °C	-40 ... +70 °C
Protection class IP	IP20	IP20	IP20
Product properties, functions, components general
Product feature
● silicon-free	Yes	Yes	Yes
Product component
● PG connection socket	Yes	No	Yes
● strain relief	Yes	Yes	Yes
Standards, specifications, approvals
Certificate of suitability
● RoHS conformity	Yes	Yes	Yes
● UL approval	Yes	Yes	Yes

Order number	6ES7972-0BA70-0A0	6ES7972-0BB70-0A0	6GK1500-0EA02	6GK1500-0FC10
Product type designation	PROFIBUS bus connector, RS485, Fast Connect, without PG socket, 90°	PROFIBUS bus connector, RS485, Fast Connect, with PG socket, 90°	PROFIBUS bus connector RS 485	PROFIBUS FC bus connector RS 485
Product description	PROFIBUS bus connector, RS485, Fast Connect, without PG-socket, 90°	PROFIBUS bus connector, RS485, Fast Connect, with PG socket, 90°	Bus connector with axial cable outlet (180°)	Bus connector with axial cable outlet (180°)
Suitability for use	For connecting PROFIBUS nodes to the PROFIBUS bus cable	For connecting PROFIBUS nodes to the PROFIBUS bus cable	For connecting PROFIBUS nodes to the PROFIBUS bus cable	For connecting PROFIBUS nodes to the PROFIBUS bus cable
Transmission rate
Transfer rate with PROFIBUS			9.6 kbit/s ... 12 Mbit/s	9.6 kbit/s ... 12 Mbit/s
Transfer rate with PROFIBUS DP	9.6 kbit/s ... 12 Mbit/s	9.6 kbit/s ... 12 Mbit/s
Interfaces
Number of electrical connections
● for PROFIBUS cables	2	2	2	2
● for network components or terminal equipment	1	1	1	1
Type of electrical connection
● for PROFIBUS cables	integrated insulation displacement contacts for 2-core PB FC-installation cables	Integrated insulation displacement contacts for 2-core PB FC-installation cables	Terminal blocks	Integrated insulation displacement contacts for 2-core PB FC installation cables
● for network components or terminal equipment	9-pin Sub-D connector	9-pin Sub-D connector	Sub-D connector (9-pin)	Sub-D connector (9-pin)
Type of electrical connection FastConnect	Yes	Yes	No	Yes
Mechanical data
Design of terminating resistor	Integrated resistor combination that can be selected with slide switch. Disconnect function: When the resistor is connected, the outgoing bus is isolated	Integrated resistor combination that can be selected with slide switch	Integrated resistor combination that can be selected with slide switch. Disconnect function: When the resistor is connected, the outgoing bus is isolated.	Integrated resistor combination that can be selected with slide switch. Disconnect function: When the resistor is connected, the outgoing bus is isolated.
Material of the enclosure	plastic	plastic	metal	plastic
Locking mechanism design	Screw	Screw	Screw	Screw
Design, dimensions and weight
Type of cable outlet	90 degree cable outlet	90 degree cable outlet	180° cable outlet	180° cable outlet
Width	15.8 mm	15.8 mm	15 mm	16 mm
Height	72 mm	72 mm	57 mm	62 mm
Depth	36.4 mm	36.4 mm	39 mm	34.5 mm
Net weight	34 g	10 g	100 g	40 g
Permitted ambient conditions
Ambient temperature
● during operation	-25 ... +60 °C	-25 ... +60 °C	0 ... 60 °C	-40 ... +70 °C
● during storage	-40 ... +70 °C	-40 ... +70 °C	-25 ... +80 °C	-25 ... +80 °C
● during transport	-40 ... +70 °C	-40 ... +70 °C	-25 ... +80 °C	-25 ... +80 °C
Relative humidity at 25 °C without condensation during operation maximum			75 %	75 %
Protection class IP	IP20	IP20	IP20	IP20
Product properties, functions, components general
Product feature
● silicon-free	Yes	Yes	Yes	Yes
Product component
● PG connection socket	No	Yes	No	No
● strain relief	Yes	Yes	Yes	Yes
Standards, specifications, approvals
Certificate of suitability
● RoHS conformity	Yes	Yes	Yes	Yes
● UL approval	Yes	Yes	No	Yes
● cULus approval			No	Yes
● Railway application in accordance with EN 50155			No	No

产品与解决方案在线目录与订购系统技术信息服务与支持联系人与合作伙伴服务项目

用于将 PROFIBUS 节点连接到 PROFIBUS 总线电缆
安装简单
FastConnect 插头采用绝缘刺破连接技术，可确保极短的组装时间
集成端接电阻 (6ES7 972-0BA30-0A0 中不具有)
通过带 Sub-D 接口的连接器可以连接编程器，无需额外安装网络节点

Area of application

用于 PROFIBUS 的 RS485 总线连接器，可用于连接 PROFIBUS 节点或 PROFIBUS 网络部件到 PROFIBUS 总线电缆。

Design

提供有各种类型的总线连接器，可优化用于连接的设备：

总线连接器具有轴向电缆引出线（180°），可用于如 PC 和 SIMATIC HMI OP，传输速率高达 12 Mbit/s，带集成的总线端接电阻 西门子总线接头6ES7972-0BA42-0A0
带垂直电缆引出线的总线连接器（90°）；

有 30°电缆引出线的总线接头（经济型），无编程器接口，数据传输速率Z大为 1.5 Mbit/s，无集成的总线端接电阻。
PROFIBUS 快速连接 RS485 总线接头（90°或 180°电缆引出线），传输速率Z大为 12Mbit/s，采用绝缘刺破技术可实现快速简单安装（用于硬线和软线）。

西门子总线接头6ES7972-0BA42-0A0

Functions

总线连接器可直接插入到 PROFIBUS 站或 PROFIBUS 网络组件的 PROFIBUS 接口（9 针 Sub-D 接口）中。

可使用 4 个端子在插头中连接进入和离开的 PROFIBUS 电缆。

必须在 PROFIBUS 网段的两端进行这种连接。

Integration 西门子总线接头6ES7972-0BA42-0A0

总线连接器	6ES7972-0BA12-0A0 6ES7972-0BB12-0XA	6ES7972-0BA42-0A0 6ES7972-0BB42-0A0	6ES7972-0BA30-0A0¹⁾
电缆引出线	90° 电缆引出线	35° 电缆引出线	30° 电缆引出线
用于 PLC
S7-200/-300/-400®	•²⁾	•	•
S7-1200 with CM 1241, CM 1242-5; CM 1243-5	•
带有 CP 5603 的 S7-mEC	•	•	•
C7-633 DP, C7-634 DP, C7-635, C7-636	•	•	•
S5-115U 至 S5-155U	•	•	•
I/O 设备
ET 200M/ET 200B/ET 200L/ET 200S	•	•	•
编程设备
PG 720/720C/PG 740/PG 760		•	•
接口
IM 308-C	•	•	•
CP 5431 FMS/DP	•	•	•
CP 342-5/CP 343-5/ CP 443-5/IM 467	•	•
CP 5511/CP 5512/CP 5711/CP 5603	•	•	•
CP 561x/CP 562x	•	•
SIMATIC OP
OLM/OBT	•	•
RS 485 中继器	•	•
诊断中继器	•	•

• 适用于以下应用

1) 不能将柔性总线电缆与此连接器结合使用，Z大 1.5 Mbit/s

2) S7-400:
如果指定了 DP 接口，不能用于 MPI/DP 接口
如果指定了IFM2 接口，不能用于 IFM1 接口

总线连接器	6ES7972-0BA52-0A0 6ES7972-0BB52-0A0	6ES7972-0BA61-0A0 6ES7972-0BB61-0A0	6GK1500-0FC10	6GK1500-0EA02
电缆引出线	90° 电缆引出线	35° 电缆引出线	180° 电缆引出线	180° 电缆引出线
用于 PLC
S7-200/-300/-400	•	•
S7-1200 with CM 1241, CM 1242-5; CM 1243-5	•
带有 CP 5603 的 S7-mEC	•	•	•	•
C7-633 DP, C7-634 DP, C7-635, C7-636	•	•
S5-115U 至 S5-155U	•	•
I/O 设备
ET 200M/ET 200B/ET 200L/ET 200S	•	•
编程设备
PG 720/720C/PG 740/PG 760			•	•
接口
IM 308-C	•	•
CP 5431® FMS/DP	•	•
CP 342-5/CP 343-5/ CP 443-5/IM 467	•	•
CP 5511/CP 5512/CP 5711/CP 5603	•	•	•	•
CP 561x/CP 562x			•	•
SIMATIC OP			•	•
OLM/OBT	•	•	•	•
RS 485 中继器	•	•
诊断中继器	•	•

• 适用于以下应用

总线连接器	6ES7972-0BA70-0A0 6ES7972-0BB70-0A0
电缆引出线	90° 电缆引出线
用于 PLC
S7-200/-300/-400	•
S7-1200 with CM 1241, CM 1242-5; CM 1243-5	•
S7-1500	•
带有 CP 5603 的 S7-mEC	•
C7-633 DP, C7-634 DP, C7-635, C7-636	•
S5-115U 至 S5-155U	•
I/O 设备
ET 200M/ ET 200B/ ET 200L/ ET 200S, ET 200MP, ET 200SP	•
编程设备
PG 720/720C/PG 740/PG 760
接口
IM 308-C	•
CP 5431® FMS/DP	•
CP 342-5/CP 343-5/ CP 443-5/IM 467	•
CP 5511/CP 5512/CP 5711/CP 5603	•
CP 561x/CP 562x
SIMATIC OP
OLM/OBT	•
RS 485 中继器	•
诊断中继器	•

Technical Specifications

Order number	6ES7972-0BA12-0A0	6ES7972-0BB12-0A0	6ES7972-0BA42-0A0
Product type designation	PROFIBUS bus connector, RS485, screw, without PG socket, 90°	PROFIBUS bus connector, RS485, screw, with PG socket, 90°	PROFIBUS bus connector, RS485, screw, without PG socket, 35°
Product description	PROFIBUS bus connector, RS485, screw, without PG socket, 90°	PROFIBUS bus connector, RS485, srew, with PG socket, 90°	PROFIBUS bus connector, RS485, screw, without PG socket, 35°
Suitability for use	For connecting PROFIBUS nodes to the PROFIBUS bus cable	For connecting PROFIBUS nodes to the PROFIBUS bus cable	For connecting PROFIBUS nodes to the PROFIBUS bus cable
Transmission rate
Transfer rate with PROFIBUS DP	9.6 kbit/s ... 12 Mbit/s	9.6 kbit/s ... 12 Mbit/s	9.6 kbit/s ... 12 Mbit/s
Interfaces
Number of electrical connections
● for PROFIBUS cables	2	2	2
● for network components or terminal equipment	1	1	1
Type of electrical connection
● for PROFIBUS cables	Screw	Screw	Screw
● for network components or terminal equipment	Sub-D connector (9-pin)	Sub-D connector (9-pin)	9-pin Sub-D connector
Type of electrical connection FastConnect		No	No
Mechanical data
Design of terminating resistor	Integrated resistor combination that can be selected with slide switch	Integrated resistor combination that can be selected with slide switch	Integrated resistor combination that can be selected with slide switch
Material of the enclosure	plastic	plastic	plastic
Locking mechanism design		Screw	Screw
Design, dimensions and weight
Type of cable outlet	90° cable outlet	90° cable outlet	35 degree cable outlet
Width	15.8 mm	15.8 mm	15.8 mm
Height	64 mm	64 mm	54 mm
Depth	35.6 mm	35.6 mm	39.5 mm
Net weight	10 g	10 g	60 g
Permitted ambient conditions
Ambient temperature
● during operation	-25 ... +60 °C	-25 ... +60 °C	-25 ... +60 °C
● during storage	-40 ... +70 °C	-40 ... +70 °C	-40 ... +70 °C
● during transport	-40 ... +70 °C	-40 ... +70 °C	-40 ... +70 °C
Protection class IP	IP20	IP20	IP20
Product properties, functions, components general
Product feature
● silicon-free	Yes	Yes	Yes
Product component
● PG connection socket	No	Yes	No
● strain relief	Yes	Yes	Yes
Standards, specifications, approvals
Certificate of suitability
● RoHS conformity	Yes	Yes	Yes
● UL approval	Yes	Yes	Yes

Order number	6ES7972-0BB42-0A0	6ES7972-0BA30-0A0	6ES7972-0BA52-0A0
Product type designation	PROFIBUS bus connector, RS485, screw, with PG socket, 35°	PROFIBUS bus connector, RS485, Fast Connect, without PG socket, 30°	PROFIBUS bus connector, RS485, Fast Connect, without PG socket, 90°
Product description	PROFIBUS bus connector, RS485, screw, mwith PG socket, 35°	PROFIBUS bus connector, RS485, Fast Connect, without PG socket, 30°	PROFIBUS bus connector, RS485, Fast Connect, without PG-socket, 90°
Suitability for use	For connecting PROFIBUS nodes to the PROFIBUS bus cable	For connecting PROFIBUS nodes to the PROFIBUS bus cable	For connecting PROFIBUS nodes to the PROFIBUS bus cable
Transmission rate
Transfer rate with PROFIBUS DP	9.6 kbit/s ... 12 Mbit/s	9.6 kbit/s ... 1.5 Mbit/s	9.6 kbit/s ... 12 Mbit/s
Interfaces
Number of electrical connections
● for PROFIBUS cables	2	2	2
● for network components or terminal equipment	1	1	1
Type of electrical connection
● for PROFIBUS cables	Screw	Integrated insulation displacement contacts for 2-core PB FC-installation cables	Integrated insulation displacement contacts for 2-core PB FC-installation cables
● for network components or terminal equipment	9-pin Sub-D connector	Sub-D connector (9-pin)	9-pin Sub-D connector
Type of electrical connection FastConnect	No	Yes	Yes
Mechanical data
Design of terminating resistor	Integrated resistor combination that can be selected with slide switch	no integrated terminating resistor	Integrated resistor combination that can be selected with slide switch
Material of the enclosure	plastic	plastic	plastic
Locking mechanism design	Screw		Screw
Design, dimensions and weight
Type of cable outlet	35 degree cable outlet	30° cable outlet	90 degree cable outlet
Width	15.8 mm	15 mm	15.8 mm
Height	54 mm	57.6 mm	59 mm
Depth	39.5 mm	39.5 mm	35.6 mm
Net weight	67 g	46 g	10 g
Permitted ambient conditions
Ambient temperature
● during operation	-25 ... +60 °C	-25 ... +60 °C	-25 ... +60 °C
● during storage	-40 ... +70 °C	-40 ... +70 °C	-40 ... +70 °C
● during transport	-40 ... +70 °C	-40 ... +70 °C	-40 ... +70 °C
Protection class IP	IP20	IP20	IP20
Product properties, functions, components general
Product feature
● silicon-free	Yes	Yes	Yes
Product component
● PG connection socket	Yes	No	No
● strain relief	Yes	Yes	Yes
Standards, specifications, approvals
Certificate of suitability
● RoHS conformity	Yes	Yes	Yes
● UL approval	Yes	Yes	Yes

Order number	6ES7972-0BB52-0A0	6ES7972-0BA61-0A0	6ES7972-0BB61-0A0
Product type designation	PROFIBUS bus connector, RS485, Fast Connect, with PG socket, 90°	PROFIBUS bus connector, RS485, Fast Connect, without PG socket, 35°	PROFIBUS bus connector, RS485, Fast Connect, with PG socket, 35°
Product description	PROFIBUS bus connector, RS485, Fast Connect, with PG socket, 90°	PROFIBUS bus connector, RS485, Fast Connect, without PG socket, 35°	PROFIBUS bus connector, RS485, Fast Connect, with PG socket, 35°
Suitability for use	For connecting PROFIBUS nodes to the PROFIBUS bus cable	For connecting PROFIBUS nodes to the PROFIBUS bus cable	For connecting PROFIBUS nodes to the PROFIBUS bus cable
Transmission rate
Transfer rate with PROFIBUS DP	9.6 kbit/s ... 12 Mbit/s	9.6 kbit/s ... 12 Mbit/s	9.6 kbit/s ... 12 Mbit/s
Interfaces
Number of electrical connections
● for PROFIBUS cables	2	2	2
● for network components or terminal equipment	1	1	1
Type of electrical connection
● for PROFIBUS cables	Integrated insulation displacement contacts for 2-core PB FC-installation cables	Integrated insulation displacement contacts for 2-core PB FC-installation cables	Integrated insulation displacement contacts for 2-core PB FC-installation cables
● for network components or terminal equipment	9-pin Sub-D connector	9-pin Sub-D connector	9-pin Sub-D connector
Type of electrical connection FastConnect	Yes	Yes	Yes
Mechanical data
Design of terminating resistor	Integrated resistor combination that can be selected with slide switch	Integrated resistor combination that can be selected with slide switch	Integrated resistor combination that can be selected with slide switch
Material of the enclosure	plastic	plastic	plastic
Locking mechanism design	Screw
Design, dimensions and weight
Type of cable outlet	90 degree cable outlet	35 degree cable outlet	35 degree cable outlet
Width	15.8 mm	15.8 mm	15.8 mm
Height	59 mm	54 mm	54 mm
Depth	35.6 mm	39.5 mm	39.5 mm
Net weight	10 g	29 g	34 g
Permitted ambient conditions
Ambient temperature
● during operation	-25 ... +60 °C	-25 ... +60 °C	-25 ... +60 °C
● during storage	-40 ... +70 °C	-40 ... +70 °C	-40 ... +70 °C
● during transport	-40 ... +70 °C	-40 ... +70 °C	-40 ... +70 °C
Protection class IP	IP20	IP20	IP20
Product properties, functions, components general
Product feature
● silicon-free	Yes	Yes	Yes
Product component
● PG connection socket	Yes	No	Yes
● strain relief	Yes	Yes	Yes
Standards, specifications, approvals
Certificate of suitability
● RoHS conformity	Yes	Yes	Yes
● UL approval	Yes	Yes	Yes

Order number	6ES7972-0BA70-0A0	6ES7972-0BB70-0A0	6GK1500-0EA02	6GK1500-0FC10
Product type designation	PROFIBUS bus connector, RS485, Fast Connect, without PG socket, 90°	PROFIBUS bus connector, RS485, Fast Connect, with PG socket, 90°	PROFIBUS bus connector RS 485	PROFIBUS FC bus connector RS 485
Product description	PROFIBUS bus connector, RS485, Fast Connect, without PG-socket, 90°	PROFIBUS bus connector, RS485, Fast Connect, with PG socket, 90°	Bus connector with axial cable outlet (180°)	Bus connector with axial cable outlet (180°)
Suitability for use	For connecting PROFIBUS nodes to the PROFIBUS bus cable	For connecting PROFIBUS nodes to the PROFIBUS bus cable	For connecting PROFIBUS nodes to the PROFIBUS bus cable	For connecting PROFIBUS nodes to the PROFIBUS bus cable
Transmission rate
Transfer rate with PROFIBUS			9.6 kbit/s ... 12 Mbit/s	9.6 kbit/s ... 12 Mbit/s
Transfer rate with PROFIBUS DP	9.6 kbit/s ... 12 Mbit/s	9.6 kbit/s ... 12 Mbit/s
Interfaces
Number of electrical connections
● for PROFIBUS cables	2	2	2	2
● for network components or terminal equipment	1	1	1	1
Type of electrical connection
● for PROFIBUS cables	integrated insulation displacement contacts for 2-core PB FC-installation cables	Integrated insulation displacement contacts for 2-core PB FC-installation cables	Terminal blocks	Integrated insulation displacement contacts for 2-core PB FC installation cables
● for network components or terminal equipment	9-pin Sub-D connector	9-pin Sub-D connector	Sub-D connector (9-pin)	Sub-D connector (9-pin)
Type of electrical connection FastConnect	Yes	Yes	No	Yes
Mechanical data
Design of terminating resistor	Integrated resistor combination that can be selected with slide switch. Disconnect function: When the resistor is connected, the outgoing bus is isolated	Integrated resistor combination that can be selected with slide switch	Integrated resistor combination that can be selected with slide switch. Disconnect function: When the resistor is connected, the outgoing bus is isolated.	Integrated resistor combination that can be selected with slide switch. Disconnect function: When the resistor is connected, the outgoing bus is isolated.
Material of the enclosure	plastic	plastic	metal	plastic
Locking mechanism design	Screw	Screw	Screw	Screw
Design, dimensions and weight
Type of cable outlet	90 degree cable outlet	90 degree cable outlet	180° cable outlet	180° cable outlet
Width	15.8 mm	15.8 mm	15 mm	16 mm
Height	72 mm	72 mm	57 mm	62 mm
Depth	36.4 mm	36.4 mm	39 mm	34.5 mm
Net weight	34 g	10 g	100 g	40 g
Permitted ambient conditions
Ambient temperature
● during operation	-25 ... +60 °C	-25 ... +60 °C	0 ... 60 °C	-40 ... +70 °C
● during storage	-40 ... +70 °C	-40 ... +70 °C	-25 ... +80 °C	-25 ... +80 °C
● during transport	-40 ... +70 °C	-40 ... +70 °C	-25 ... +80 °C	-25 ... +80 °C
Relative humidity at 25 °C without condensation during operation maximum			75 %	75 %
Protection class IP	IP20	IP20	IP20	IP20
Product properties, functions, components general
Product feature
● silicon-free	Yes	Yes	Yes	Yes
Product component
● PG connection socket	No	Yes	No	No
● strain relief	Yes	Yes	Yes	Yes
Standards, specifications, approvals
Certificate of suitability
● RoHS conformity	Yes	Yes	Yes	Yes
● UL approval	Yes	Yes	No	Yes
● cULus approval			No	Yes
● Railway application in accordance with EN 50155			No	No

产品与解决方案在线目录与订购系统技术信息服务与支持联系人与合作伙伴服务项目

PROFIBUS 扭缆高柔性总线电缆，2芯，按米销售；满足移动需求6XV1 830-0PH10

RS 485 总线接头带有同轴电缆接口（180度）的快速连接总线接头6GK1 500-0FC10

带有同轴电缆接口（180度）的总线接头6GK1 500-0EA02

ECOFAST 混合接头2xCu屏蔽的PROFIBUS总线接头，4xCu 1.5平方毫米；接触类型：POF，Han D for 24V；用于连接

ECOFAST 混合电缆；传输数据和能量；工具：压接工具，抛光组；安装指南；针插入 5件6GK1 905-0CA00

安装指南；插座插入 5件6GK1 905-0CB00

2xCu屏蔽的PROFIBUS ECOFAST混合有角度接头，4xCu 1.5平方毫米；用于连接ECOFAST

混合电缆；传输数据和能量；工具：压接工具，抛光组；安装指南；针插入 5件6GK1 905-0CC00

安装指南；插座插入 5件6GK1 905-0CD00

ECOFAST 终端接口2xCu屏蔽的PROFIBUS DP ECOFAST终端接口，4xCu 1.5平方毫米；带有集成终端电阻，针插入； 1件6GK1 905-0DA10

5件6GK1 905-0DA00

现场装配的插接式连接器

PROFIBUS M12 连接器内置阳极触电的M12连接器；5针，B-coded；用于连接PB电气总线电缆和ET200；1包=5件6GK1 905-0EA00

内置阴极触电的M12连接器；5针，B-coded；用于连接PB电气总线电缆和ET200；1包=5件6GK1 905-0EB00

PROFIBUS FC M12 插头 PRO 内置阳极触电的M12连接器；5针，B-coded；用于连接PB FC电气总线电缆和ET200 PRO，

使用快速连接系统可实现快速装配；1包=5件

6GK1 905-0EA10

PROFIBUS FC M12 电缆连接器 PRO 现场装配的M12连接器，5针，B-coded；金属包壳；插座插入；用于连接PB FC电气总线电缆和

ET200 PRO，使用快速连接系统可实现快速装配；1包=5件

6GK1 905-0EB10

7/8”插件连接器7/8”连接器，5针，针插入；用于ET200的现场装配

7/8”连接器，5针，插座插入；用于ET200的现场装配6

工业以太网及PROFIBUS线缆和连接器的配件

FC FO 终极工具箱用于FC SC连接器及FC BF OC连接器本地装配的组合工具，包括剥线工具、凯夫拉尔刀具、纤维断裂道具

和显微镜

IE FC 剥线器预调整剥线工具，用于工业以太网FC线缆的快速剥线6GK1 901-1GA00

IE FC 叶片磁带搭配IE FC RJ45接口使用的可替换叶片飞轮，ELS TP40；5个；5 mm 6GK1 901-1GB00

搭配IE FC RJ45接口和IE FC RJ45模块接口使用的可替换叶片磁带，ELS TP40；5组；5 mm 6GK1 901-1GB01

SC RJ POF 接头终极工具箱SC RJ POF连接器现场安装组合，包括剥线工具、凯夫拉尔刀具、SC RJ磨板、磨光纸、研磨基底及显微镜6GK1 900-0ML00-0AA0

IE FC RJ 补充装置POF SC RJ POF插头终极工具箱的补充装置，包括磨光纸和粉碎锤片（5组） 6GK1 900-0MN00-0AA0

SC RJ PCF 接头终极工具箱SC RJ PCF连接器现场安装组合，包括剥线工具、凯夫拉尔刀具、纤维断裂道具和显微镜6GK1 900-0NL00-0AA0

PROFIBUS快速连接剥线器用于PROFIBUS FC 线缆快速剥线的预调剥线工具6GK1 905-6AA00

PROFIBUS快速连接叶片磁带用于PROFIBUS 剥线工具的可替换叶片磁带；5组6GK1 905-6AA00

7/8”电源T-Tap PRO T形管电源，每5针带有2个内置7/8”阴极触点、一个内置7/8”针；用于ET 200pro模块的能量连接及分配；

郑重承诺！西门子保证全新原装产品！质保一年！！一年内因本身质量问题免费更换新产品，不收取任何费用，公司长期经营西门子PLC,S7-200,S7-200CN,S7-300,S7-400,S7-1200,LOGO,变频器，人机界面，电机，伺服电机，数控系统，数控主板，总线电缆，等自动化

价格	￥6.00
发货	上海金山区付款后3天内
品牌	西门子
12	3
6	59
8	7
库存	11196起订196

西门子总线接头6ES7972-0BA42-0xA0

Area of application

Design

Functions 西门子总线接头6ES7972-0BA42-0A0

Integration

Technical Specifications

Area of application

Design

Functions

Integration 西门子总线接头6ES7972-0BA42-0A0

Technical Specifications

上海隆彦自动化科技有限公司詹雪芬
