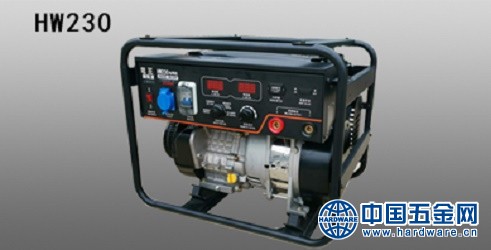

HW230EW产品优势 |HW230EW Product Advantage
* 全数字IGBT控制技术,电弧控制稳定、焊缝成形好,飞溅小。
* 辅助电220V\2KW\50Hz输出,焊接工作时可同时带水泵、角磨机、砂轮、照明灯等工具。
* 无刷、诱导子发电技术,发电机同时输出两个发电绕组,相互独立,互不影响。焊机持续作业能力强,可以做到人停机不停24小时连续作业,电效率高。
* 用于野外施工、适用多种焊条,可以出色施行纤维素焊条、低氢焊条及氩弧焊的全位置焊接。
* Full digital IGBT control technology, stable arc control, good weld shape and small spatter.
* Auxiliary electricity 220V\ 2KW\ 50Hz output, welding work can be accompanied by water pump, angle grinder, grinding wheel, lighting and other tools.
* Brushless and inducer power generation technology, the generator outputs two power generation windings at the same time, which are independent of each other and do not affect each other. The welding machine has strong continuous working ability, which can make people stop working continuously for 24 hours, and the electric efficiency is high.
* Used for field construction, suitable for a variety of electrodes, can be excellent implementation of cellulose electrode, low hydrogen electrode and argon arc welding all-position welding.
HW230EW性能参数配置/Specification of HW230EW
| |
碳刷/Brush | 无/No |
驱动方式/Driven | 直接耦合/Direct coupling |
防护等级/Protection class | IP21 |
绝缘等级/Insulation class | F |
焊接输出/Descending Output
| |
额定功率/Rated power | 5.6 KW |
额定电流/Rated current | 200 DCA |
额定电压/Rated voltage | 28 DCV |
空载电压/Idle voltage | 85 DCV |
暂载率/Rated duty cycle | 50% |
焊接电流调节范围/Current range control | (50-230)DCA |
辅助电输出/Accessorial Receptacle | |
额定功率/Rated power | 3.0 KW |
额定电压/Rated voltage | 220 ACV |
辅助电额定电流/Rated current | 13.7 A |
暂载率/Rated duty cycle | 100% |
发动机/Engine | |
型号/Model | 三菱/MITSUBISHI GT1300 |
类型/Type | 四冲程单缸/4-stroke, 1-cylinder |
排气量/Displacement | 391 CC |
额定功率/Rated output power | 13 HP |
额定转速/Rated speed | 3580 rpm |
启动方式/Starting system | 手启动/Recoil |
燃料/Fuel | 无铅汽油/Unleaded gasoline |
冷却方式/Cooling system | 风冷/Air cooling |
其它/Others | |
油箱容量/Fuel tank capacity | 12 L |
外形尺寸/Dimension (L×W×H) | 707×530×560 mm |
重量/Net weight | 105 Kg |
车轮/Wheel kit | 选配/option |
