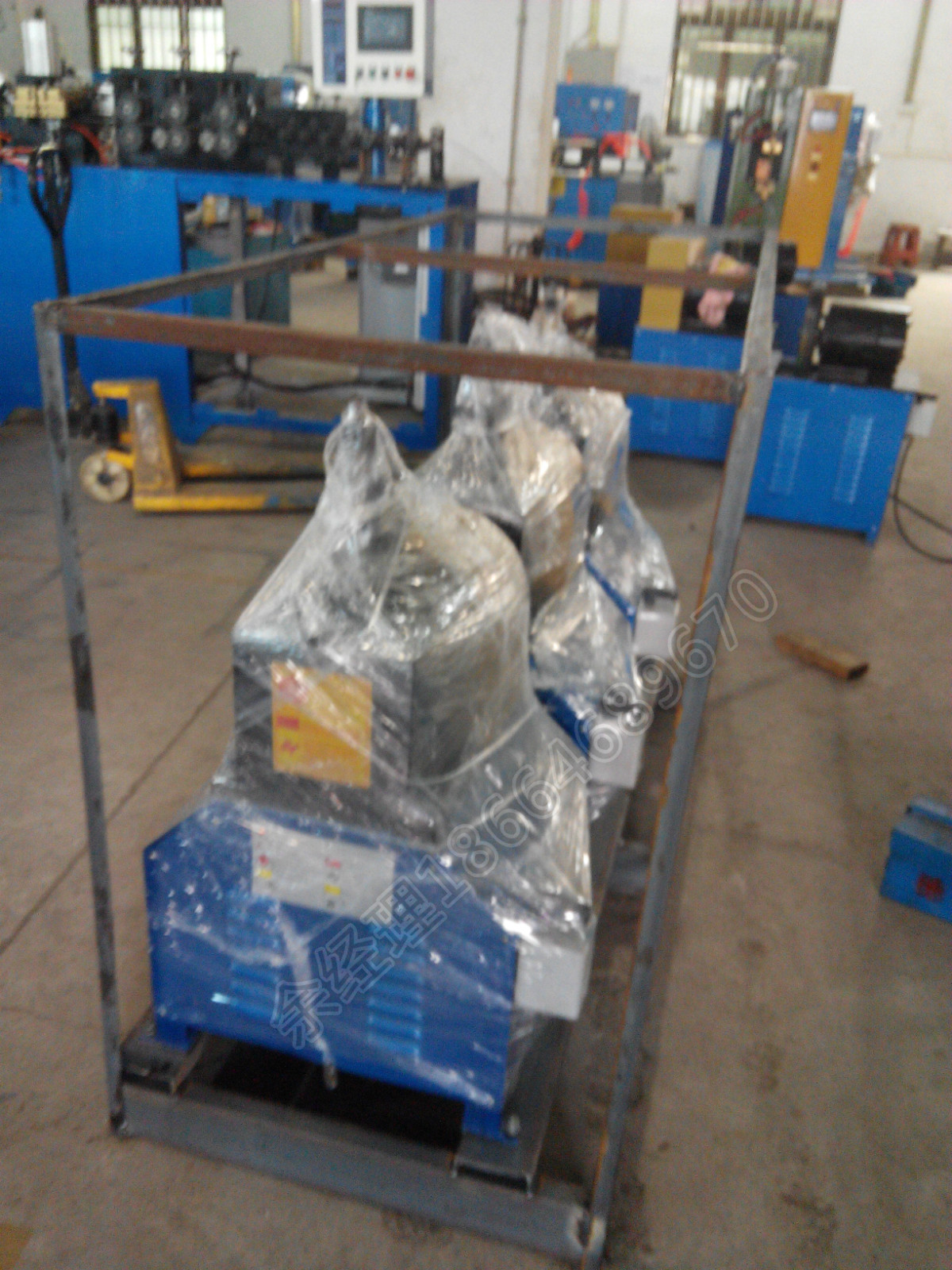

车间实拍照片
车间实拍照片
车间实拍照片
整机特点
该机器主要用于金属丝网片周边修整，修整切边直径
为φ1-φ10mm。
修整网片大小不限，可以通过辅助工装协助完成，切削
速度快，端口平整，操作简便。
采用优质的轴承钢，轴承，在保证机器正常工作的同时
也提高了机器的稳定性和可靠性，提供了超长的使用寿
命。
可根据不同客户的需要定做各种规格的机器。
Features
This machine is mainly used for trimming the edge of Steel Wire
Mesh.
valid diameter is between 1-10mm.
The size of the mesh is not limited, work can be done easily and
quickly with the help of fixtures. This machine provide fast cutting
speed, even trimming end and it is very easy to use.
Utilizing high quality shaft and bearings, not only meet the
requirement of normal working, also increases the stability and
reliability, and make it durable.
Can make customized machine for different requirement.
主要技术参数 Main Technical Parameters
|
型号 Model |
TM-5MM |
TM-8MM |
TM-10MM |
|
额定电压 Rated Voltage |
380V-415V AC |
||
|
额定功率 Rated Power |
1.5KW |
3KW |
5KW |
|
电机转速 Motor Speed |
2300RPM |
1400RPM |
980RPM |
|
Z大剪切直径 Max Cutting Diameter |
Φ5MM |
Φ8MM |
Φ10MM |
|
剪切速度 Cutting Speed |
8-10M/MIN |
||
|
机器尺寸 Machine Size（L x W x H） |
470400X740MM |
470400X740MM |
520460X930MM |
|
重量 Machine Weight |
90KG |
105KG |
200KG |
